Photodigm DBR Laser Diodes ranging 730-1100 nm

(972) 235-7584

1036DBRL-MHF-BF

wavelength:

Type:

DBR Laser Diode

Chip Architecture:

Low Power $2,750

Power:

20 mW

- 90 mW

Mounting:

Mode Hop Free (MHF) $700

Packaging:

Butterfly $2,500

PRODUCT DESCRIPTION

The 1036 nm DBR Series of high-performance edge-emitting laser diodes are based on Photodigm’s advanced monolithic single-frequency Gallium Arsenide (GaAs) based laser technology. It provides a single spatial mode beam and has passivated facets for reliability. The 1036 nm Series DBR devices are used in frequency doubling applications as a low-noise optical pump source.

Chip Architecture Description

This laser diode is based on Photodigm's proprietary Distributed Bragg Reflector (DBR) design. It is augmented by the Low Power laser diode architecture, a product designed for applications where low threshold currents are desired and power output isn't application critical. Power output is between 20-90 mW

Package Add-on description:

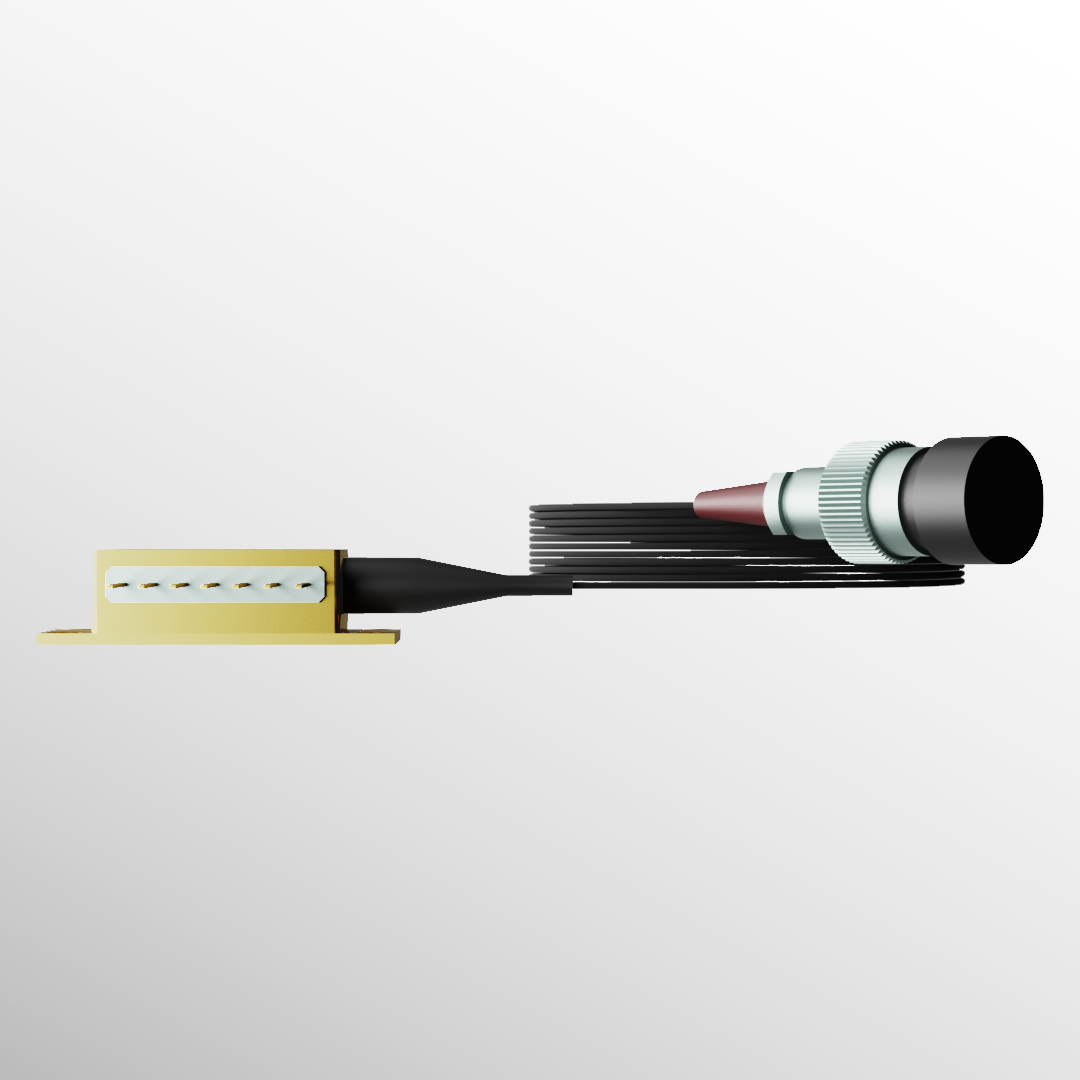

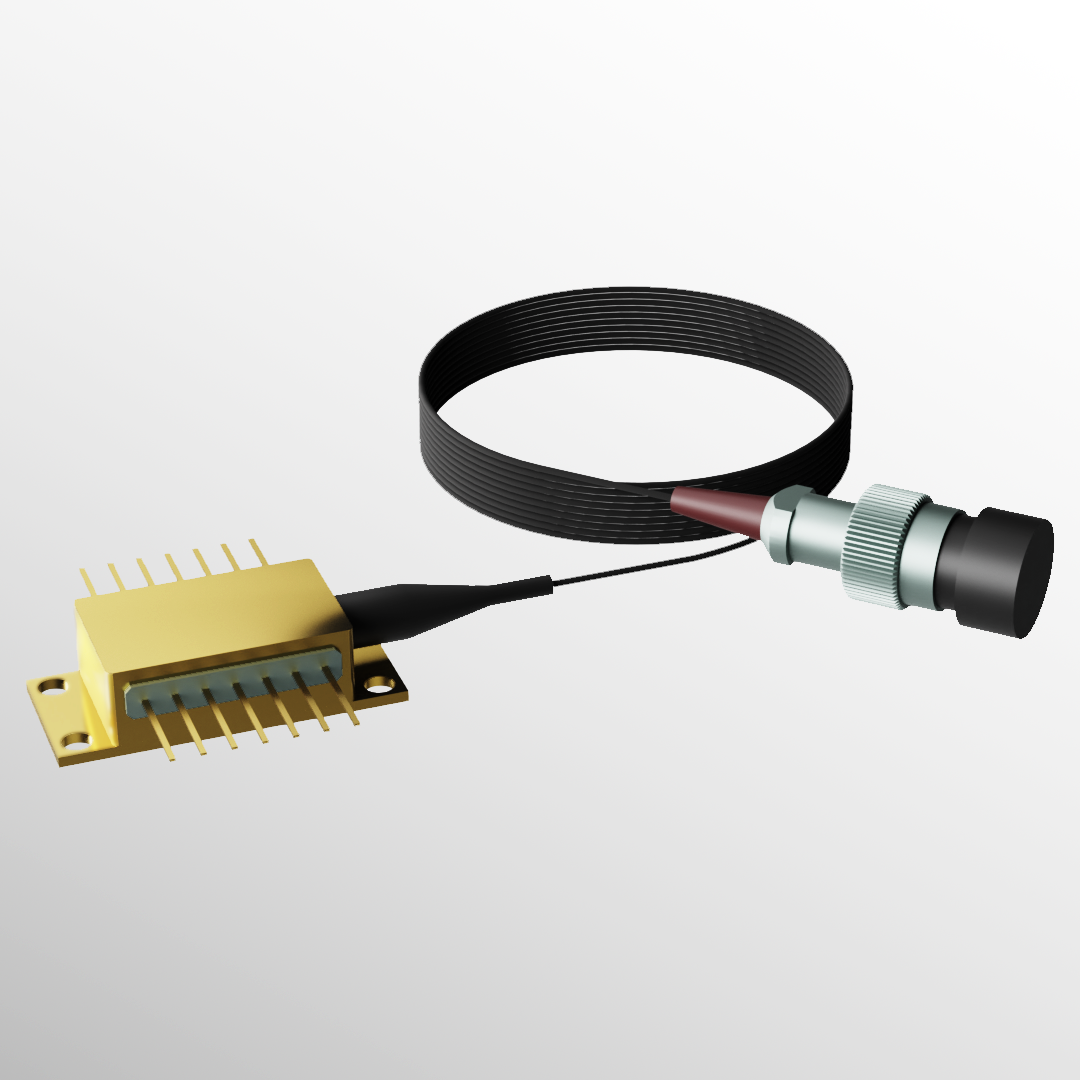

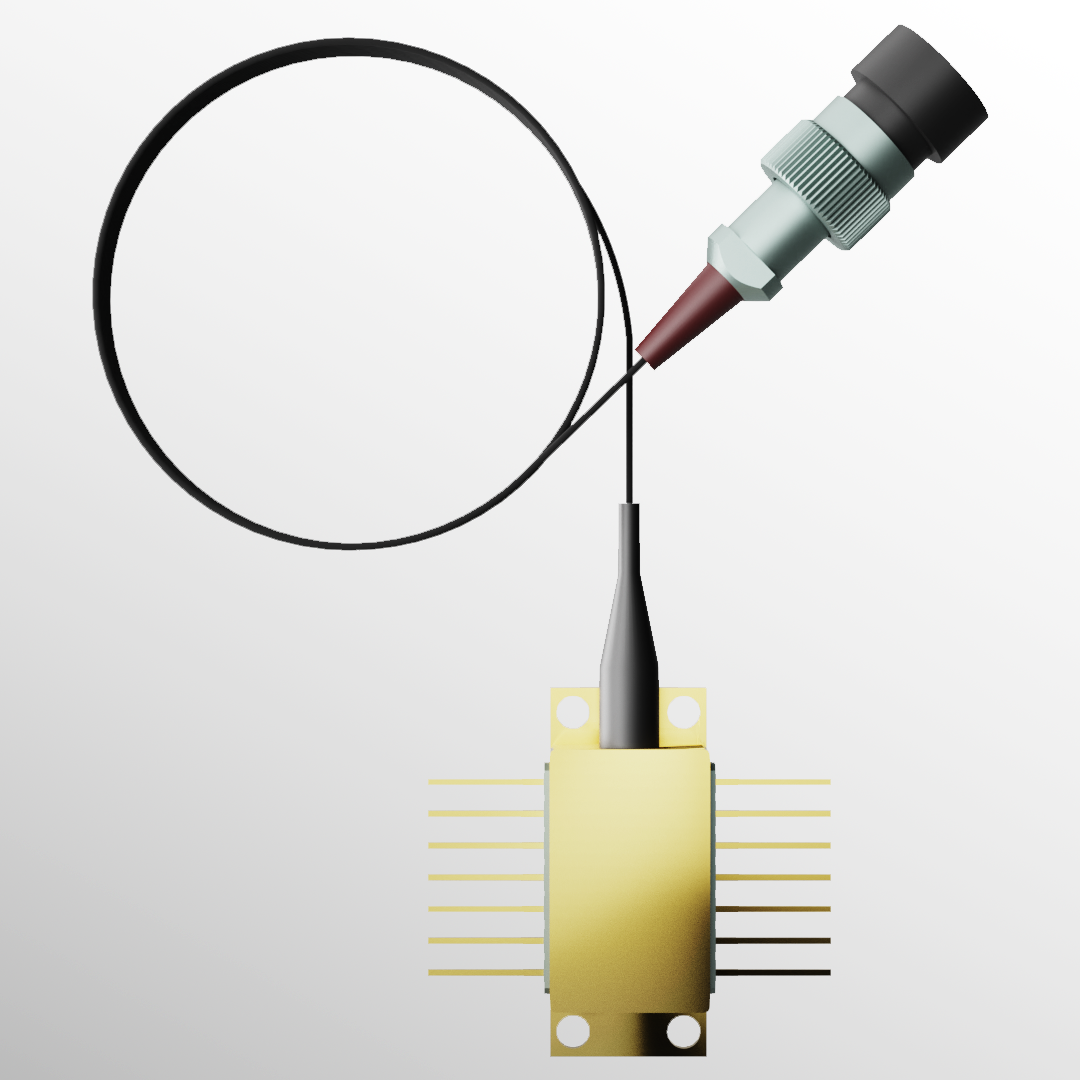

The Butterfly package is the ideal package for the customer that needs fiber-coupling. It is ideal for situations where free-space transmission isn't possible. Note: Butterfly packages result in lower total output power due to fiber coupling efficiency losses. The Mode-Hop Free (MHF) add-on is ideal for applications where tunability is critical, removing the mode-hops for consistent power and wavelength tuning by controlling current.

PRICE: $5,950.00

1036 nm single-frequency DBR Low Power Chip Architecture ($2750) with output power of 20-90 mW, Mode Hop Free Mounting ( $700), in a Butterfly Package ( $2500), for a total unit cost of $5950

HOW TO ORDER

Contact us for your custom quote, special frequency selection, and certification to certain atomic absorption lines. Contact us for product availability, more information on volume discounts, and any questions!

Contact us for: 1036DBRL-MHF-BF
